HOW THE STANDING POWER CHAIR IS MADE

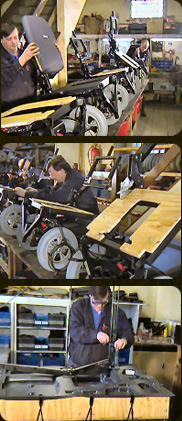

The Manufacturing Process

The manufacturers of the Genie Standing Power Chair understand that all their clients are unique; and as such the demands on the products people are purchasing have specific individual requirements.

This state-of-the-art electric wheelchair is designed to be flexible using an integrated modular approach. We can create a highly customized specification from our standard production modules. This, and state-of-the-art manufacturing, enables us to produce a great product at a very reasonable price.

Our customers' needs are important to us and are at the heart of our business, coupled with a first class professional service. The Genie is customizable to meet the needs of specific bodies and user’s needs and can be built to order.

The Standing Power Chair is simple and intuitive, and comes with a user's manual.
All products come with a twelve-month manufacturer's warranty.

INDEPENDENCE II WHEELCHAIR
Technical Data: please contact us directly.

"GENIE" FREEDOM I WHEELCHAIR
Technical Data: Indoor/outdoor use - classification 'B'

Capacity:
18 stone - 252 lbs - 114 Kg

Drive:
Controls dynamic motors

Control;
24 Volt system, Controls Dynamic electronics, motors and

Charger
Skf Linear Actuator.

Batteries:
Two Deta 12V DTP Gel Semi traction, terminal flat 40 Ahr Batteries or Sonnenschein A212/36G6. Range comparable to other makes of chair using same size batteries. As a guide only, 10-16 miles on a single charge may be expected. It must be borne in mind that weight, terrain, and other factors will influence distance performance. The "Genie" has enough power to enable it's user to lead a very full and interesting day. Controls dynamic external charger.

Hill climbing capacity: 10%

Tires:
Green Tires, micro cellular compound standard.

Measurements and Weights:

Total Width:
22in. - 560 mm

Turning circle (with footrests):
44in. dia - 1118mm

Turning circle (without footrests):
41in. dia - 1041mm

Length (min with footrests)
41in. - 1041mm

Length (min without footrests):
30in. - 762 mm

Height:

Sitting position seat height (min):
20in. - 508mm

Sitting position seat height (max):
29in. - 736mm

Horizontal position height:
20in. - 508mm

Seat:

Standard seat width:
15 - 21in. 381-533mm

Standard seat length:
16 - 22in. 406-508mm

Standard seat cushion:
17in. wide x 16-20in. deep (432 mm x 406-508mm)
Also takes a wide range of standard cushions 'J' and Roho etc..

Folded dimensions:

For loading into a car with the use of a ramp:
23in. wide x 37in. long x 28in.
height 584 mm x 940mm x 711 mm

Weight:

Weight complete with foot plates, knee pad, side supports and headrest:
233 lbs - 106Kg

Weight without footplates, knee pads, side supports and headrest:
213lbs - 97Kg

DOWNLOAD THE TECHNICAL DATA SHEET FOR THE FREEDOM I HERE
